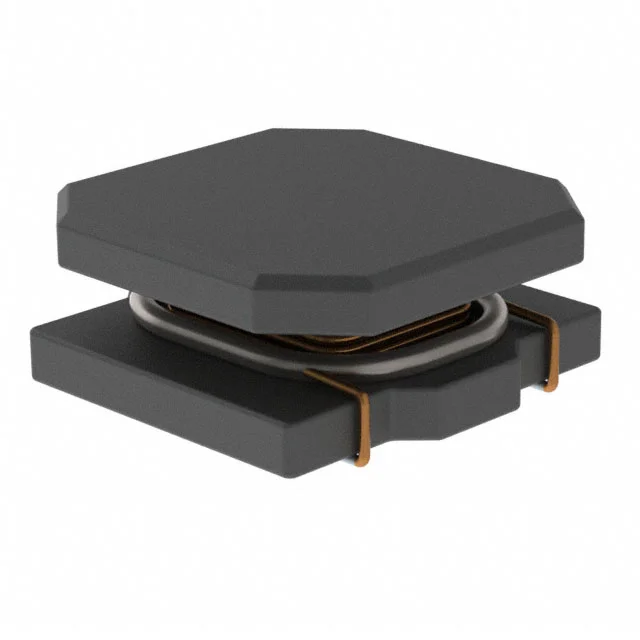

FIXED IND 330NH 3.3A 16 MOHM SMD
| Inductance | 330 nH |
| Tolerance | ±30% |
| Current Rating | 3.3 A |
| DC Resistance (DCR) | 16mOhm Max |
| saturationCurrent | 7.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 330NH 3.3A 16 MOHM SMD |
| Series | PA4336.XXXNLT |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Iron |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
