Description

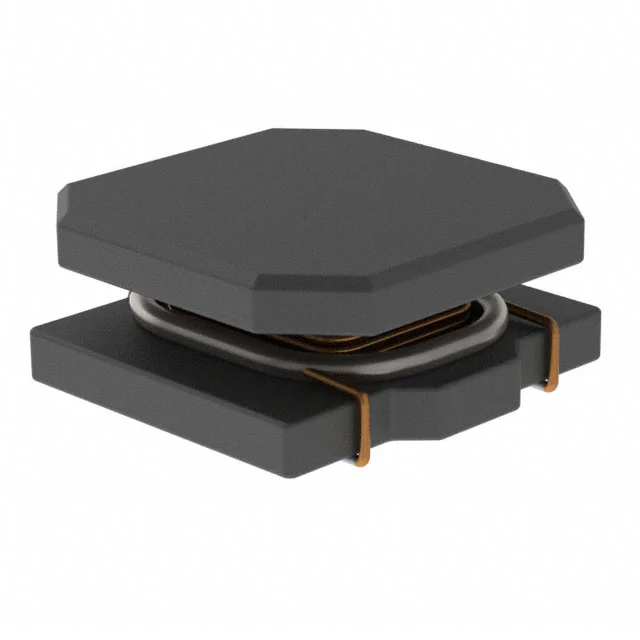

FIXED IND 47UH 440MA 923 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4336.473NLT.
PA4336.473NLT has an inductance value of 47 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4336.473NLT is rated for 440 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4336.473NLT lists a DC resistance of 923mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4336.473NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4336.473NLT to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 440 mA |
| DC Resistance (DCR) | 923mOhm Max |
| Saturation Current | 740mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 47UH 440MA 923 MOHM |
| Series | PA4336.XXXNLT |
| Product Status | Active |
| Core Material | Iron |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.079" (2.00mm) |
