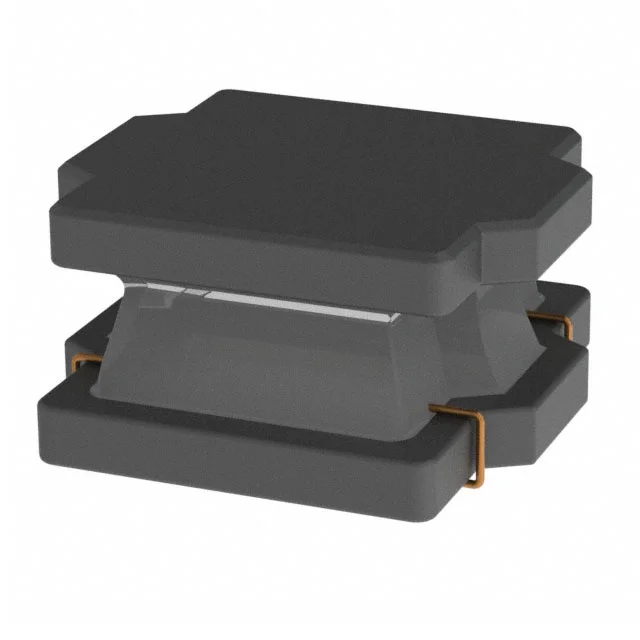

FIXED IND 4.7UH 3.3A 34 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 3.3 A |
| DC Resistance (DCR) | 34mOhm Max |
| saturationCurrent | 4.97A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 4.7UH 3.3A 34 MOHM SMD |
| Series | PA4337.XXXNLT |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Iron |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
