Description

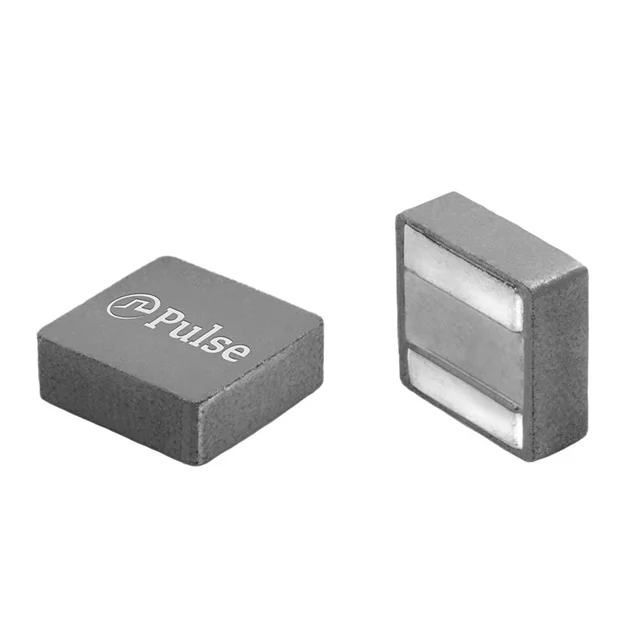

FIXED IND 22UH 12A 23.2 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA5433.223NLT.
PA5433.223NLT has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA5433.223NLT is rated for 12 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA5433.223NLT lists a DC resistance of 23.2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA5433.223NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA5433.223NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 12 A |
| DC Resistance (DCR) | 23.2mOhm Max |
| Operating Temperature | -55°C ~ 155°C |
| Dimensions | 0.650" L x 0.610" W (16.50mm x 15.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 22UH 12A 23.2 MOHM SMD |
| Series | PA5433.XXXNLT |
| Product Status | Active |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.315" (8.00mm) |
