Description

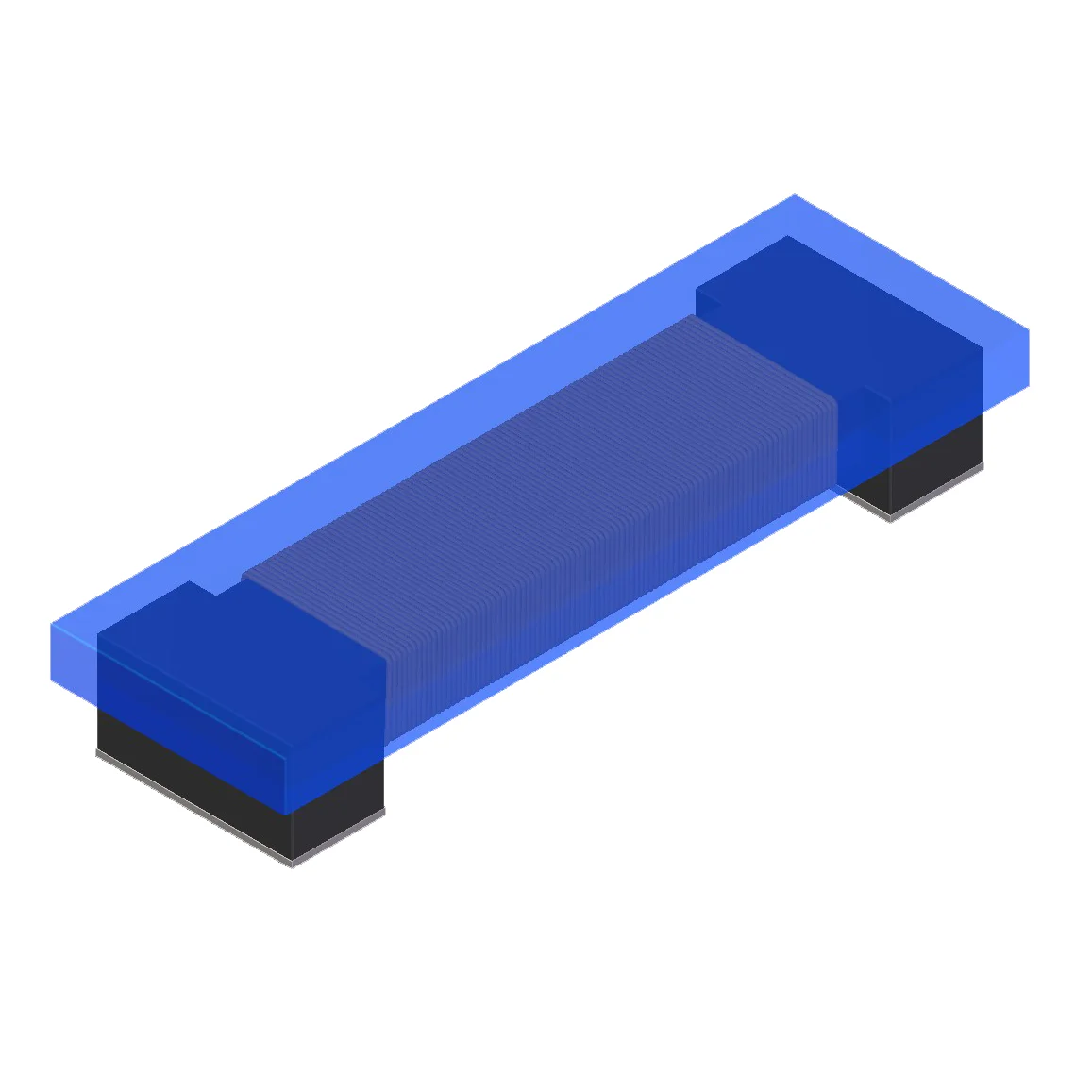

FIXED IND 4.9UH 50MA 50 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PAS1225V-492J.
PAS1225V-492J has an inductance value of 4.9 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PAS1225V-492J is rated for 50 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PAS1225V-492J lists a DC resistance of 50Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PAS1225V-492J uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PAS1225V-492J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.9 µH |
| Tolerance | ±5% |
| Current Rating | 50 mA |
| DC Resistance (DCR) | 50Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.457" L x 0.150" W (11.60mm x 3.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 4.9UH 50MA 50 OHM SMD |
| Series | PAS1225V |
| Product Status | Active |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 125kHz |
| Self Resonant Frequency | 340kHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 125 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.110" (2.80mm) |
