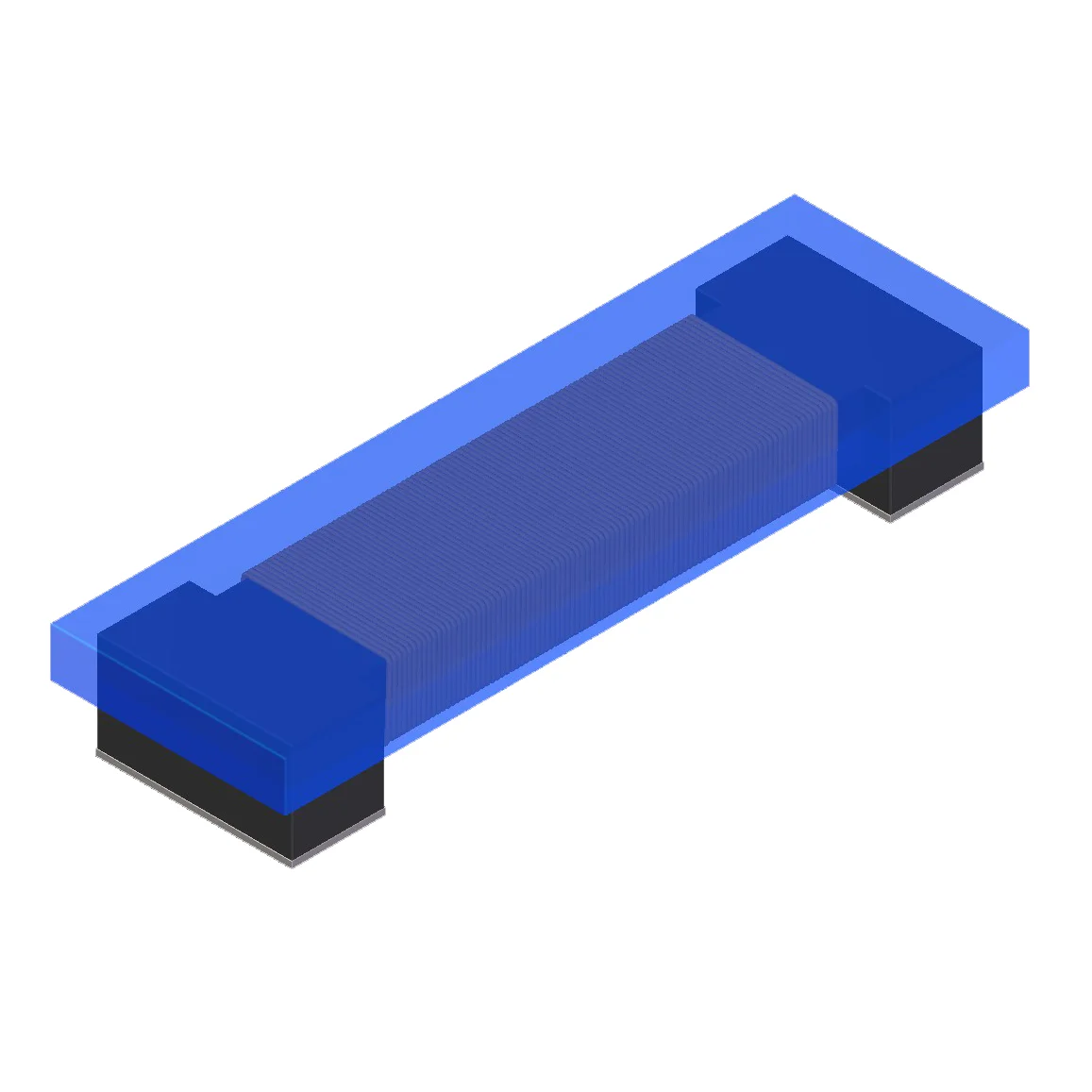

FIXED IND 5.2MH 30MA 113 OHM SMD
| Inductance | 5.2 mH |
| Tolerance | ±5% |
| Current Rating | 30 mA |
| DC Resistance (DCR) | 113Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.252" L x 0.091" W (6.40mm x 2.30mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 5.2MH 30MA 113 OHM SMD |
| Series | PAS6420V |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 520kHz |
| ratings | AEC-Q200 |
| testFrequency | 125 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
