Description

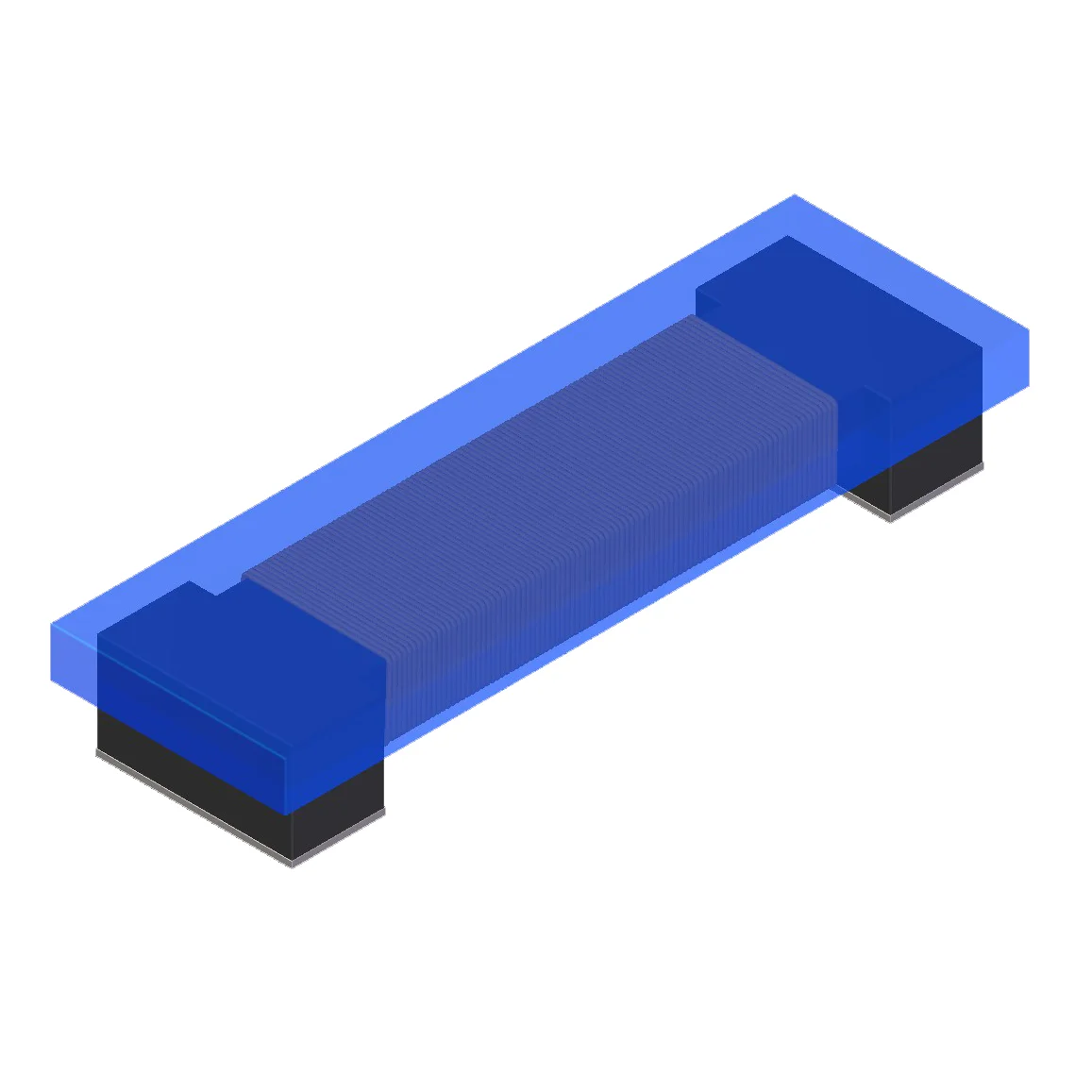

FIXED IND 7MH 20MA 125 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PAS6420V-702J.
PAS6420V-702J has an inductance value of 7 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PAS6420V-702J is rated for 20 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PAS6420V-702J lists a DC resistance of 125Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PAS6420V-702J uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PAS6420V-702J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 7 mH |
| Tolerance | ±5% |
| Current Rating | 20 mA |
| DC Resistance (DCR) | 125Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.252" L x 0.091" W (6.40mm x 2.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 7MH 20MA 125 OHM SMD |
| Series | PAS6420V |
| Product Status | Active |
| Shielding | Unshielded |
| Self Resonant Frequency | 420kHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 125 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.079" (2.00mm) |
