Description

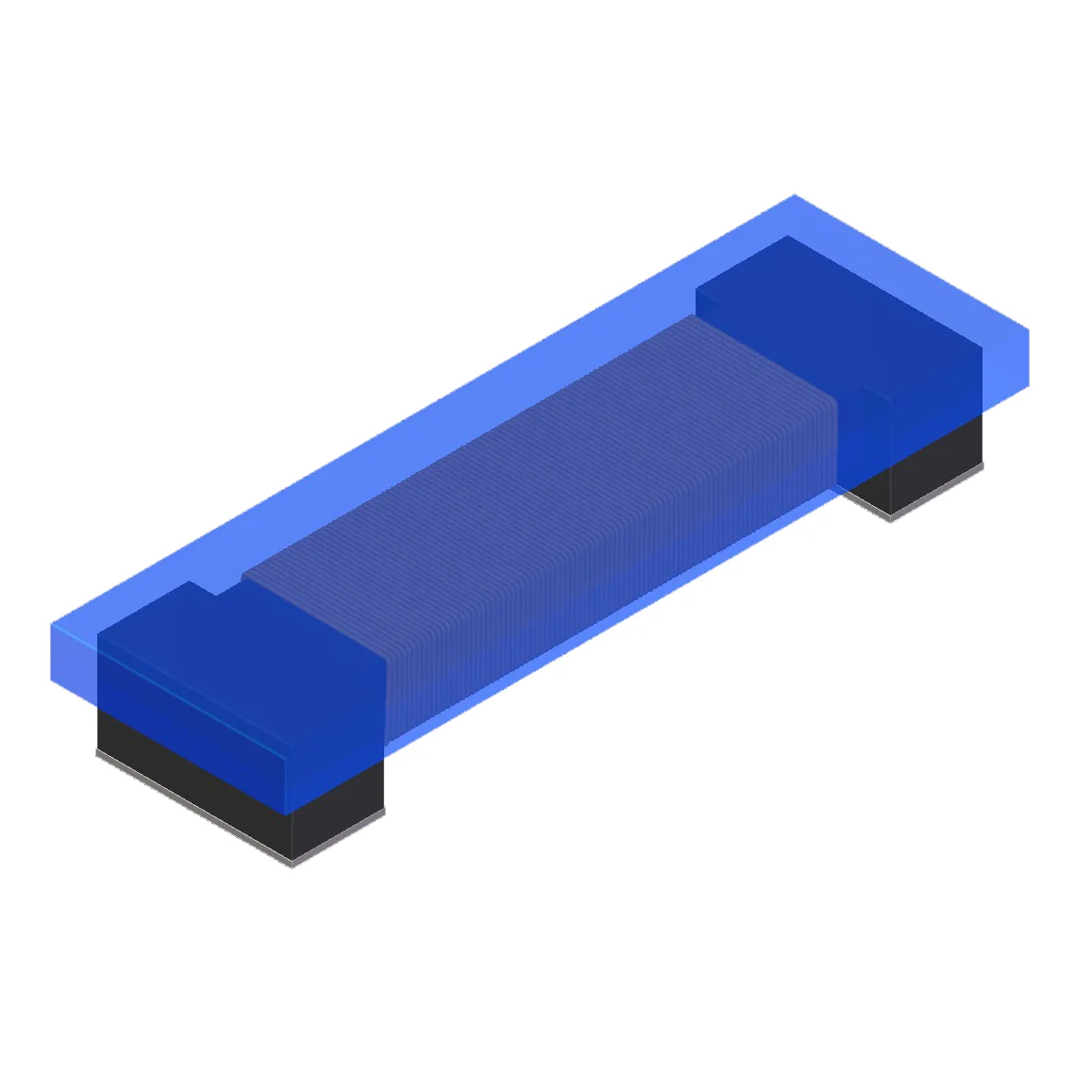

FIXED IND 7.2MH 15MA 130 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PAS6420V-722J.
PAS6420V-722J has an inductance value of 7.2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PAS6420V-722J is rated for 15 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PAS6420V-722J lists a DC resistance of 130Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PAS6420V-722J uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PAS6420V-722J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 7.2 mH |
| Tolerance | ±10% |
| Current Rating | 15 mA |
| DC Resistance (DCR) | 130Ohm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.252" L x 0.091" W (6.40mm x 2.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 7.2MH 15MA 130 OHM SMD |
| Series | PAS6420V |
| Product Status | Active |
| Shielding | Unshielded |
| Self Resonant Frequency | 450kHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 125 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.079" (2.00mm) |
