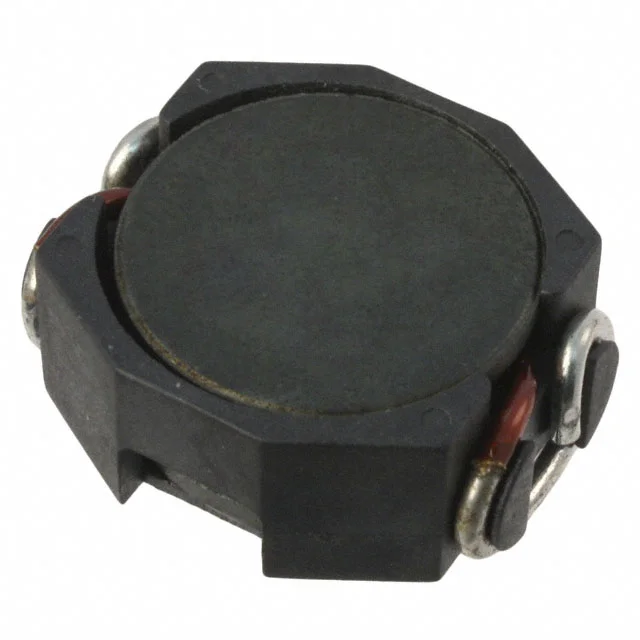

FIXED IND 1.2UH 23.7A 2.2 MOHM
| Inductance | 1.2 µH |
| Tolerance | ±20% |
| Current Rating | 23.7 A |
| DC Resistance (DCR) | 2.2mOhm Max |
| saturationCurrent | 55A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.940" L x 0.820" W (23.87mm x 20.83mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.2UH 23.7A 2.2 MOHM |
| Series | PB2020NL |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | - |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.400" (10.16mm) |
| features | - |
