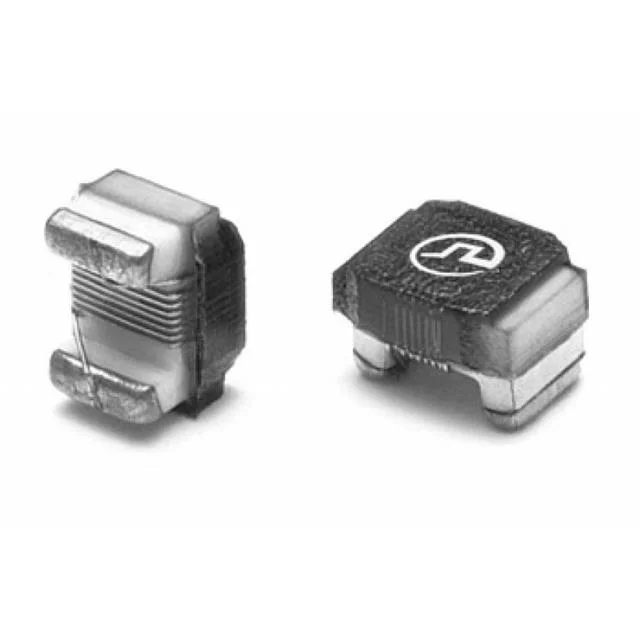

PE-0402CD360JTT
Pulse Electronics
Description
FIXED IND 36NH 350MA 390 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-0402CD360JTT.
PE-0402CD360JTT has an inductance value of 36 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-0402CD360JTT is rated for 350 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-0402CD360JTT lists a DC resistance of 390mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-0402CD360JTT uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-0402CD360JTT to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 36 nH |
| Tolerance | ±5% |
| Current Rating | 350 mA |
| DC Resistance (DCR) | 390mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.047" L x 0.026" W (1.19mm x 0.66mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 36NH 350MA 390 MOHM |
| Series | 0402CD |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 26 @ 250MHz |
| Self Resonant Frequency | 2.32GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.024" (0.61mm) |
