Description

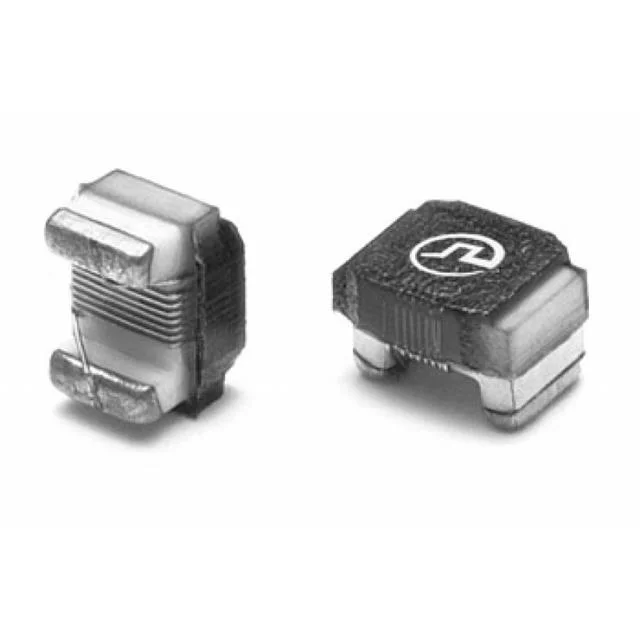

FIXED IND 4.7NH 640MA 130 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-0402CD4N7JTT.
PE-0402CD4N7JTT has an inductance value of 4.7 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-0402CD4N7JTT is rated for 640 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-0402CD4N7JTT lists a DC resistance of 130mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-0402CD4N7JTT uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-0402CD4N7JTT to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.7 nH |
| Tolerance | ±5% |
| Current Rating | 640 mA |
| DC Resistance (DCR) | 130mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.047" L x 0.026" W (1.19mm x 0.66mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 4.7NH 640MA 130 MOHM |
| Series | 0402CD |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 250MHz |
| Self Resonant Frequency | 4.775GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.024" (0.61mm) |
