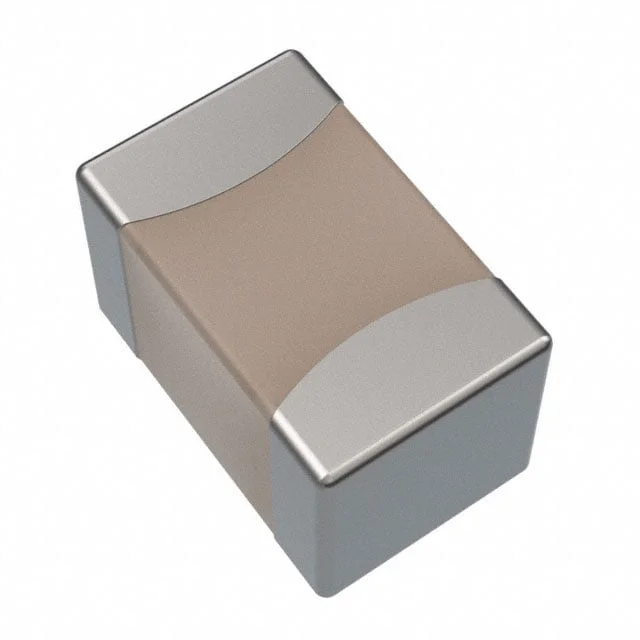

PE-0603CLH1R8STS
Pulse Electronics
Description
FIXED IND 1.8UH 750MA 312 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-0603CLH1R8STS.
PE-0603CLH1R8STS has an inductance value of 1.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-0603CLH1R8STS is rated for 750 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-0603CLH1R8STS lists a DC resistance of 312mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-0603CLH1R8STS uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-0603CLH1R8STS to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.8 µH |
| Current Rating | 750 mA |
| DC Resistance (DCR) | 312mOhm Max |
| Saturation Current | 400mA |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.8UH 750MA 312 MOHM |
| Series | 0805CLH |
| Product Status | Active |
| Type / Construction | Multilayer |
| Shielding | Shielded |
| Self Resonant Frequency | 95MHz |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.037" (0.95mm) |
