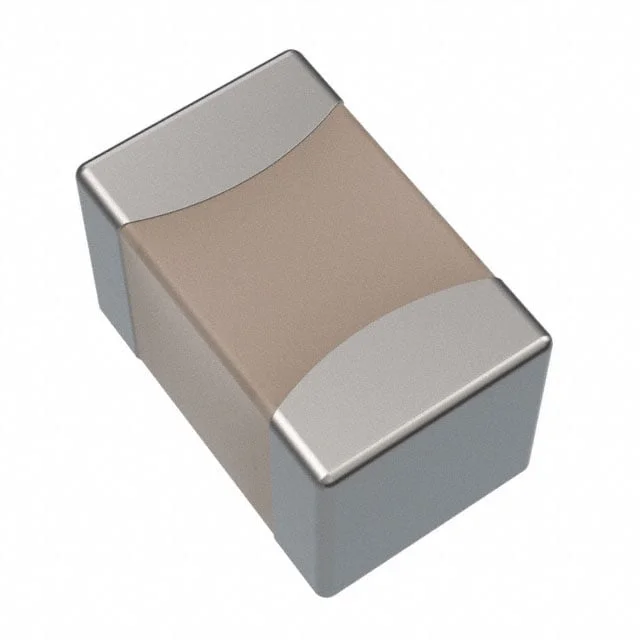

PE-0603CLHR56STS
Pulse Electronics
Description
FIXED IND 560NH 1.05A 156 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-0603CLHR56STS.
PE-0603CLHR56STS has an inductance value of 560 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-0603CLHR56STS is rated for 1.05 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-0603CLHR56STS lists a DC resistance of 156mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-0603CLHR56STS uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-0603CLHR56STS to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 560 nH |
| Current Rating | 1.05 A |
| DC Resistance (DCR) | 156mOhm Max |
| Saturation Current | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 560NH 1.05A 156 MOHM |
| Series | 0805CLH |
| Product Status | Active |
| Type / Construction | Multilayer |
| Shielding | Shielded |
| Self Resonant Frequency | 100MHz |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 |
| Height - Seated (Max) | 0.037" (0.95mm) |
