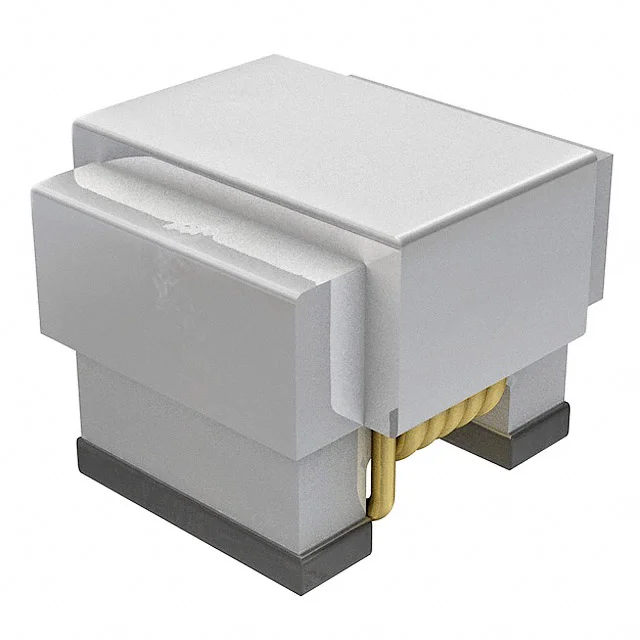

Description
FIXED IND 269NH 350MA 1 OHM SMD
Specifications
Inductance
269 nH
Current Rating
350 mA
DC Resistance (DCR)
1Ohm Max
Dimensions
0.090" L x 0.066" W (2.29mm x 1.68mm)
Product Attributes
Manufacturer Verified
Last verified: 6/17/2026| Inductance | 269 nH |
| Tolerance | ±5% |
| Current Rating | 350 mA |
| DC Resistance (DCR) | 1Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.090" L x 0.066" W (2.29mm x 1.68mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 269NH 350MA 1 OHM SMD |
| Series | 0805CD |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 45 @ 250MHz |
| selfResonantFreq | 650MHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.062" (1.58mm) |
| features | - |
