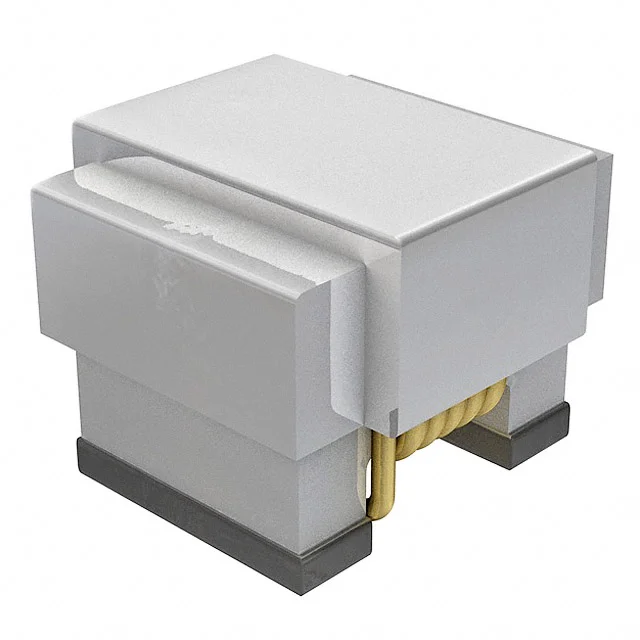

FIXED IND 545NH 230MA 1.9 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-0805CD561JTT.
PE-0805CD561JTT has an inductance value of 545 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-0805CD561JTT is rated for 230 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-0805CD561JTT lists a DC resistance of 1.9Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-0805CD561JTT uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-0805CD561JTT to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 545 nH |
| Tolerance | ±5% |
| Current Rating | 230 mA |
| DC Resistance (DCR) | 1.9Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.090" L x 0.066" W (2.29mm x 1.68mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 545NH 230MA 1.9 OHM |
| Series | 0805CD |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 23 @ 50MHz |
| Self Resonant Frequency | 340MHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.062" (1.58mm) |
