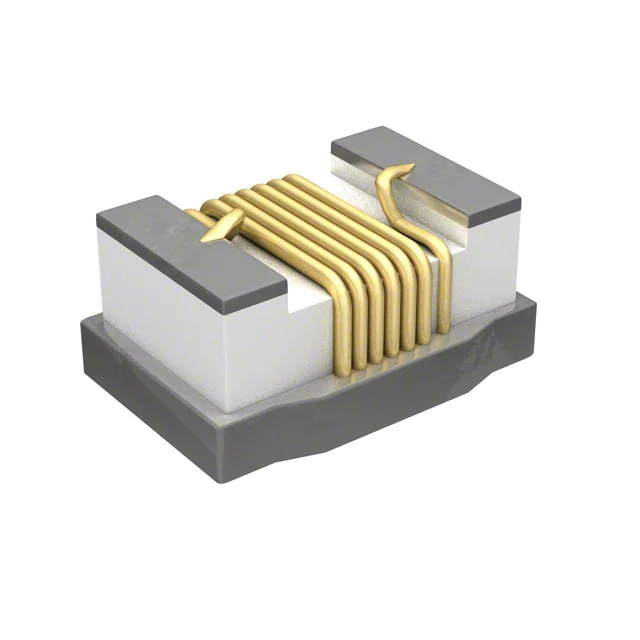

FIXED IND 330NH 300MA 1.28 OHM
| Inductance | 330 nH |
| Tolerance | ±10% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 1.28Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.090" L x 0.066" W (2.29mm x 1.68mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 330NH 300MA 1.28 OHM |
| Series | 0805CM |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 40 @ 100MHz |
| selfResonantFreq | 775MHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.062" (1.58mm) |
| features | - |
