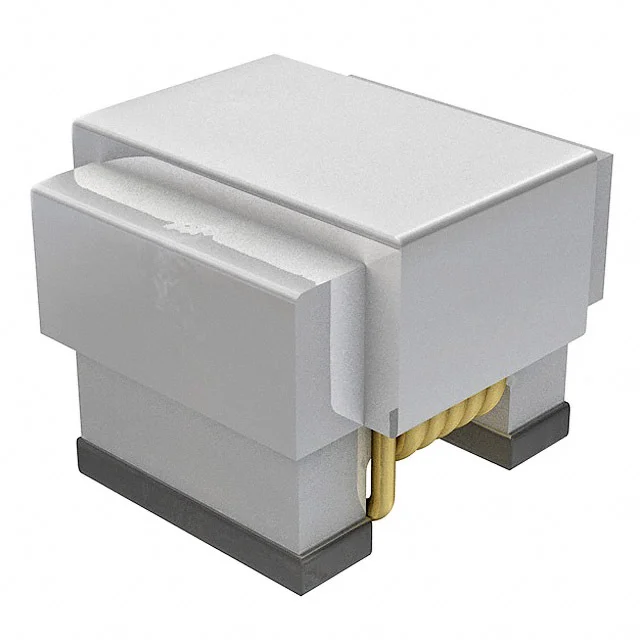

FIXED IND 4.7NH 140MA 2.8 OHM
| Inductance | 4.7 nH |
| Tolerance | ±10% |
| Current Rating | 140 mA |
| DC Resistance (DCR) | 2.8Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.090" L x 0.066" W (2.29mm x 1.68mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 4.7NH 140MA 2.8 OHM |
| Series | 0805FT |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 15 @ 7.96MHz |
| selfResonantFreq | 43MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.062" (1.58mm) |
| features | - |
