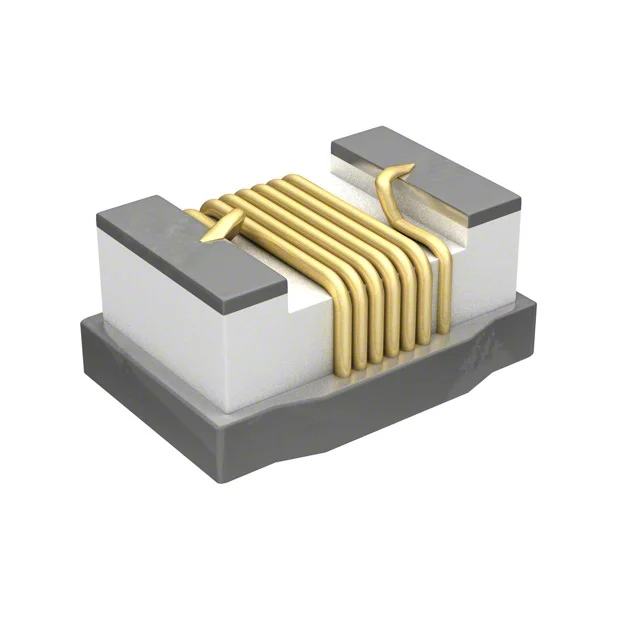

Description
FIXED IND 1.79UH 300MA 2.6 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-1008CD182KTT.
PE-1008CD182KTT has an inductance value of 1.79 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-1008CD182KTT is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-1008CD182KTT lists a DC resistance of 2.6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-1008CD182KTT uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-1008CD182KTT to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Product Attributes
| Inductance | 1.79 µH |
| Tolerance | ±10% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 2.6Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.79UH 300MA 2.6 OHM |
| Series | 1008CD |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 28 @ 50MHz |
| Self Resonant Frequency | 160MHz |
| Inductance Test Frequency | 7.9 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.090" (2.29mm) |
