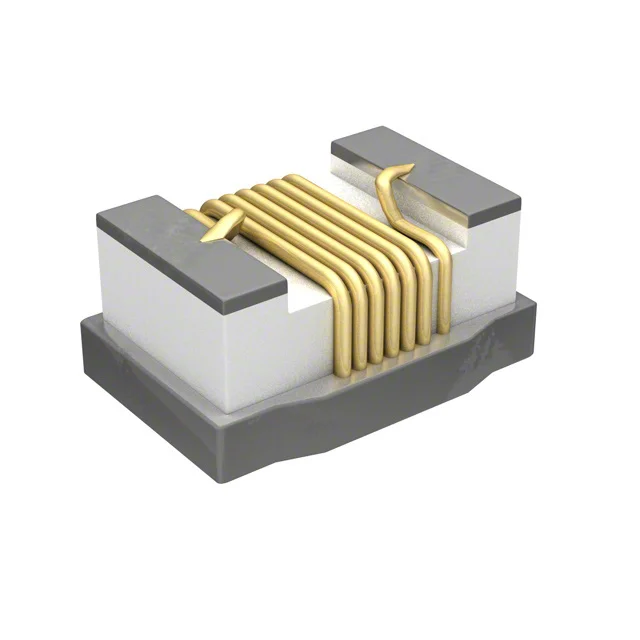

FIXED IND 18NH 1A 100 MOHM SMD
| Inductance | 18 nH |
| Tolerance | ±2% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 100mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Case / Size | 1008 (2520 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 18NH 1A 100 MOHM SMD |
| Series | 1008CM |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 55 @ 500MHz |
| selfResonantFreq | 1.85GHz |
| ratings | - |
| testFrequency | 50 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.090" (2.29mm) |
| features | - |
