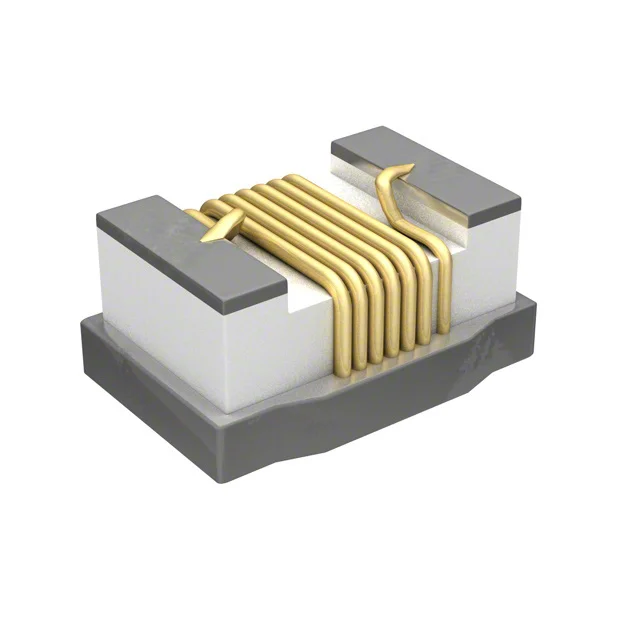

FIXED IND 560NH 350MA 800 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-1008CM561JTT.
PE-1008CM561JTT has an inductance value of 560 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-1008CM561JTT is rated for 350 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-1008CM561JTT lists a DC resistance of 800mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-1008CM561JTT uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-1008CM561JTT to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 560 nH |
| Tolerance | ±5% |
| Current Rating | 350 mA |
| DC Resistance (DCR) | 800mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 560NH 350MA 800 MOHM |
| Series | 1008CM |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 100MHz |
| Self Resonant Frequency | 425MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.090" (2.29mm) |
