Description

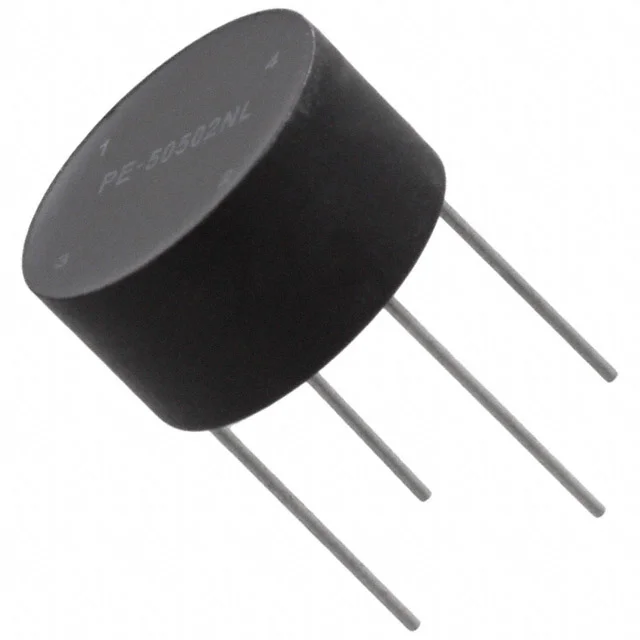

FIXED IND 2MH 250MA 1.3 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-50502NL.
PE-50502NL has an inductance value of 2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-50502NL is rated for 250 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-50502NL lists a DC resistance of 1.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-50502NL uses a package or case of Radial, Vertical Cylinder, 4 Leads. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-50502NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2 mH |
| Current Rating | 250 mA |
| DC Resistance (DCR) | 1.3Ohm Max |
| Operating Temperature | -55°C ~ 70°C |
| Dimensions | 0.754" Dia (19.15mm) |
| Case / Size | Radial, Vertical Cylinder, 4 Leads |
| Package / Case | Radial, Vertical Cylinder, 4 Leads |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2MH 250MA 1.3 OHM TH |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Inductance Test Frequency | 20 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.400" (10.16mm) |
