PE-51509
Pulse Electronics
Description

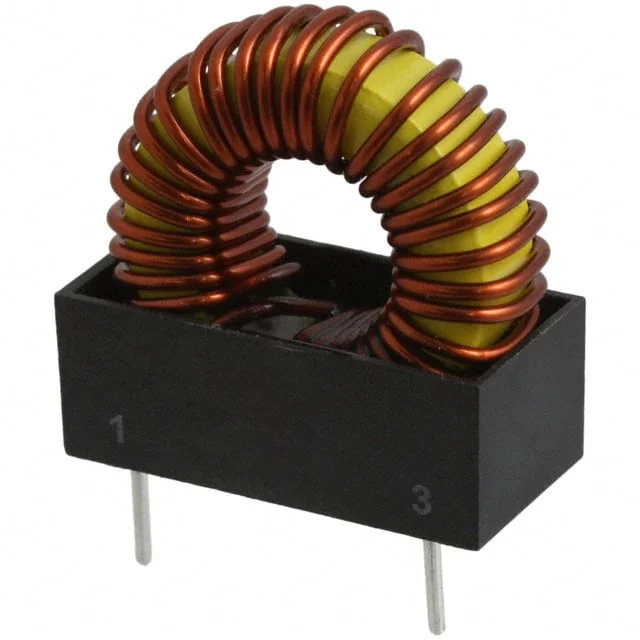

FIXED IND 14UH 10A 9 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-51509.
PE-51509 has an inductance value of 14 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-51509 is rated for 10 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-51509 lists a DC resistance of 9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-51509 uses a package or case of Radial, Vertical, 4 Leads (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-51509 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 14 µH |
| Current Rating | 10 A |
| DC Resistance (DCR) | 9mOhm Max |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 1.200" L x 0.600" W (30.48mm x 15.24mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 14UH 10A 9 MOHM TH |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Inductance Test Frequency | 50 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 1.200" (30.48mm) |
