Description

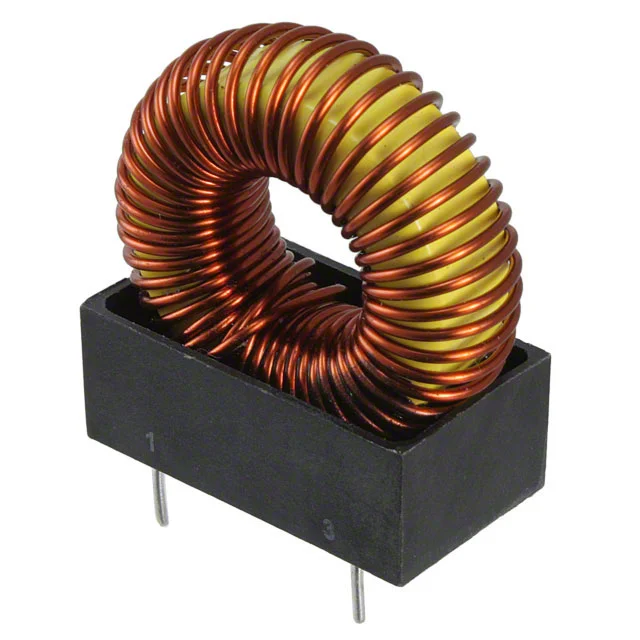

FIXED IND 43UH 10A 18 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-51511NL.
PE-51511NL has an inductance value of 43 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-51511NL is rated for 10 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-51511NL lists a DC resistance of 18mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-51511NL uses a package or case of Radial, Vertical, 4 Leads (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-51511NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 43 µH |
| Current Rating | 10 A |
| DC Resistance (DCR) | 18mOhm Max |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 1.600" L x 0.800" W (40.64mm x 20.32mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 43UH 10A 18 MOHM TH |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Inductance Test Frequency | 50 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 1.720" (43.68mm) |
