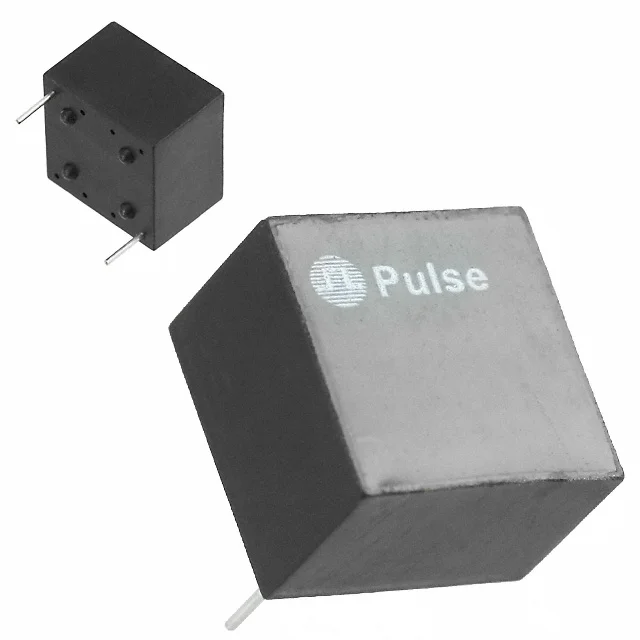

Description
FIXED IND 78UH 820MA 300 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-53821NL.
PE-53821NL has an inductance value of 78 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-53821NL is rated for 820 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-53821NL lists a DC resistance of 300mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-53821NL uses a package or case of Radial, Vertical - Corner Terminals. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-53821NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 78 µH |
| Tolerance | ±20% |
| Current Rating | 820 mA |
| DC Resistance (DCR) | 300mOhm |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.495" L x 0.495" W (12.57mm x 12.57mm) |
| Case / Size | Radial, Vertical - Corner Terminals |
| Package / Case | Radial, Vertical - Corner Terminals |
| Supplier | Pulse Electronics |
| Description | FIXED IND 78UH 820MA 300 MOHM TH |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Shielded |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.375" (9.52mm) |
