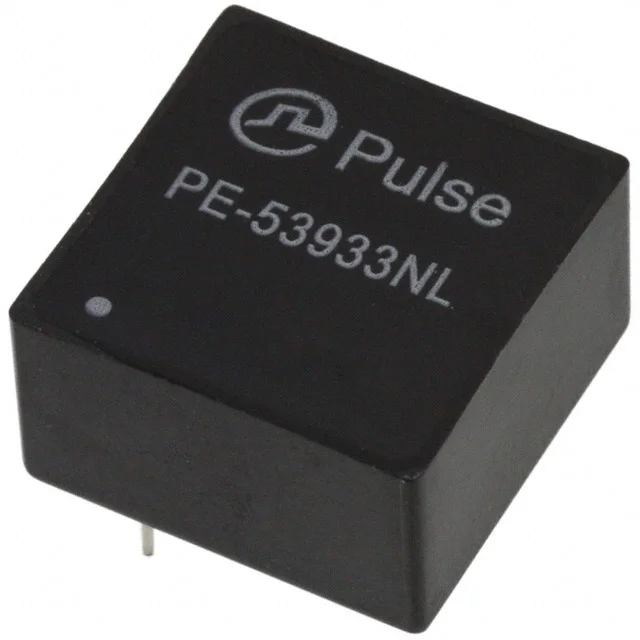

Description
FIXED IND 24UH 2.74A 70 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-53933NL.
PE-53933NL has an inductance value of 24 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-53933NL is rated for 2.74 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-53933NL lists a DC resistance of 70mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-53933NL uses a package or case of Radial, Vertical - Corner Terminals. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-53933NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 24 µH |
| Tolerance | ±20% |
| Current Rating | 2.74 A |
| DC Resistance (DCR) | 70mOhm |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.635" L x 0.635" W (16.13mm x 16.13mm) |
| Case / Size | Radial, Vertical - Corner Terminals |
| Package / Case | Radial, Vertical - Corner Terminals |
| Supplier | Pulse Electronics |
| Description | FIXED IND 24UH 2.74A 70 MOHM TH |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Shielded |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.365" (9.27mm) |
