Description

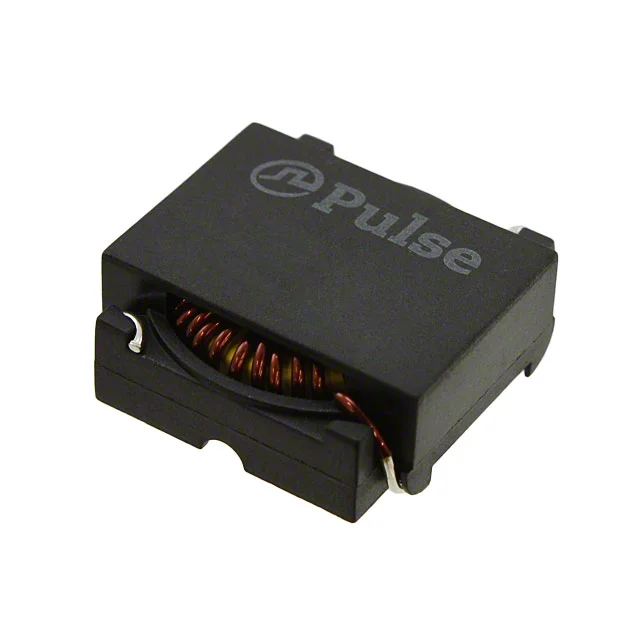

FIXED IND 38UH 3A 50 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-54040SNLT.
PE-54040SNLT has an inductance value of 38 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-54040SNLT is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-54040SNLT lists a DC resistance of 50mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-54040SNLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-54040SNLT to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 38 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 50mOhm |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.940" L x 0.940" W (23.88mm x 23.88mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 38UH 3A 50 MOHM SMD |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.400" (10.16mm) |
