Description

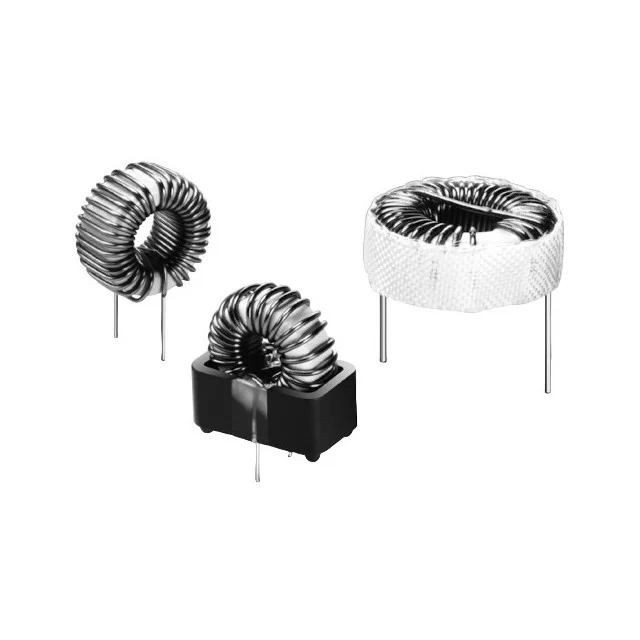

FIXED IND 55UH 7A 17 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PE-92416NL.
PE-92416NL has an inductance value of 55 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PE-92416NL is rated for 7 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PE-92416NL lists a DC resistance of 17mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PE-92416NL uses a package or case of Radial, Horizontal (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PE-92416NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 55 µH |
| Tolerance | ±20% |
| Current Rating | 7 A |
| DC Resistance (DCR) | 17mOhm Max |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 1.400" Dia (35.56mm) |
| Case / Size | Radial, Horizontal (Open) |
| Package / Case | Radial, Horizontal (Open) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 55UH 7A 17 MOHM TH |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Inductance Test Frequency | 20 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.700" (17.78mm) |
