Description

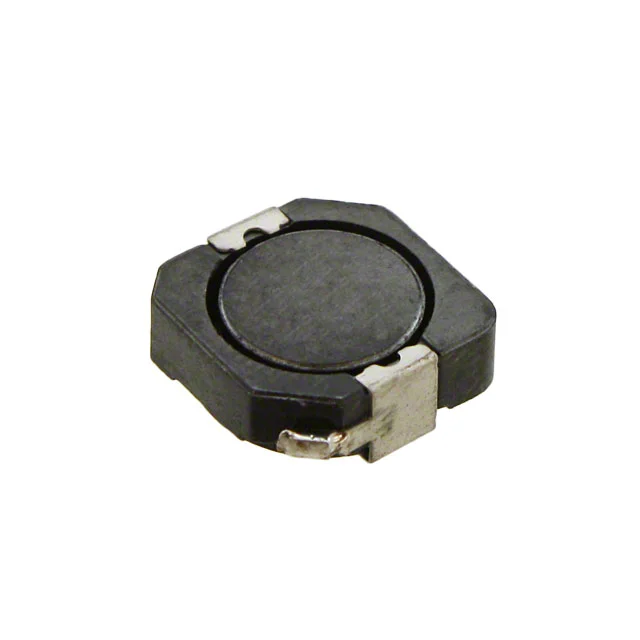

FIXED IND 15UH 3.1A 50 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PF0560.153NLT.
PF0560.153NLT has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PF0560.153NLT is rated for 3.1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PF0560.153NLT lists a DC resistance of 50mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PF0560.153NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PF0560.153NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±30% |
| Current Rating | 3.1 A |
| DC Resistance (DCR) | 50mOhm Max |
| Saturation Current | 3.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.409" L x 0.406" W (10.40mm x 10.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 15UH 3.1A 50 MOHM SMD |
| Series | PF0560NL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 19MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.157" (4.00mm) |
