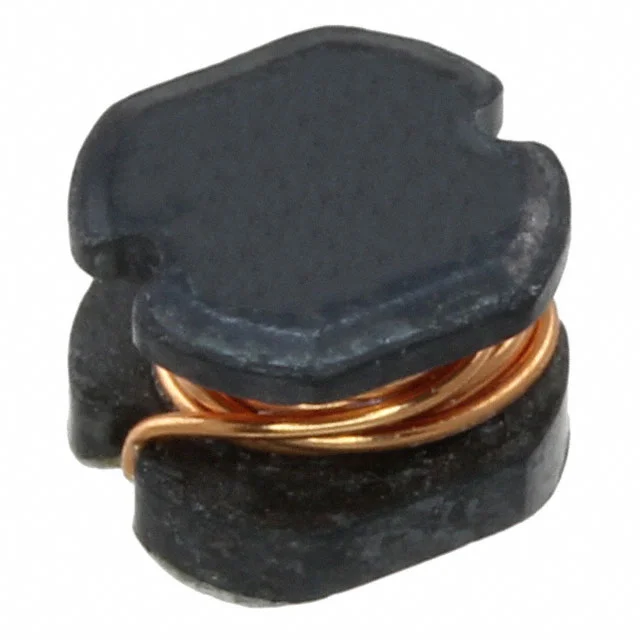

FIXED IND 1.5UH 2.7A 40 MOHM SMD
| Inductance | 1.5 µH |
| Tolerance | ±15% |
| Current Rating | 2.7 A |
| DC Resistance (DCR) | 40mOhm Max |
| saturationCurrent | 2.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.185" L x 0.165" W (4.70mm x 4.20mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.5UH 2.7A 40 MOHM SMD |
| Series | PF0580NL |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | - |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.137" (3.48mm) |
| features | - |
