Description

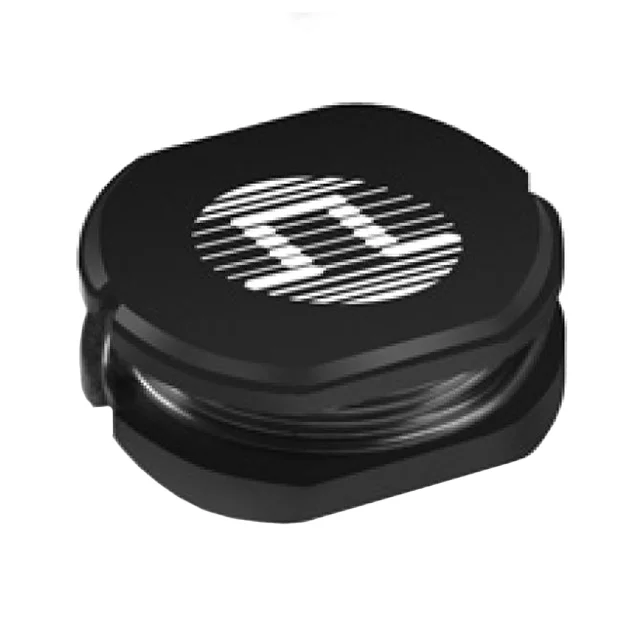

FIXED IND 10UH 2.5A 43 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PF0581.103NL.
PF0581.103NL has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PF0581.103NL is rated for 2.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PF0581.103NL lists a DC resistance of 43mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PF0581.103NL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PF0581.103NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±10% |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 43mOhm Max |
| Saturation Current | 2.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.406" L x 0.367" W (10.32mm x 9.32mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 10UH 2.5A 43 MOHM SMD |
| Series | PF0581NL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.174" (4.42mm) |
