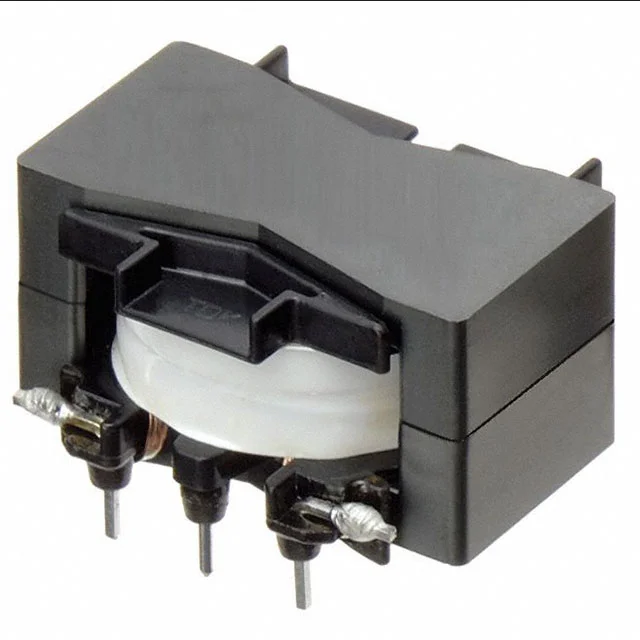

Description
FIXED IND 230UH 7.4A TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PFC3819QM-231K07D-00.
PFC3819QM-231K07D-00 has an inductance value of 230 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PFC3819QM-231K07D-00 is rated for 7.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PFC3819QM-231K07D-00 uses a package or case of Radial, Horizontal, 8 Leads. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PFC3819QM-231K07D-00 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 230 µH |
| Tolerance | ±10% |
| Current Rating | 7.4 A |
| Operating Temperature | -30°C ~ 120°C |
| Dimensions | 1.575" L x 1.319" W (40.00mm x 33.50mm) |
| Case / Size | Radial, Horizontal, 8 Leads |
| Package / Case | Radial, Horizontal, 8 Leads |
| Supplier | TDK |
| Description | FIXED IND 230UH 7.4A TH |
| Series | PFC |
| Product Status | Not For New Designs |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 50 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Features | Choke Coils for PFC (Pin Terminal Type) |
