Description

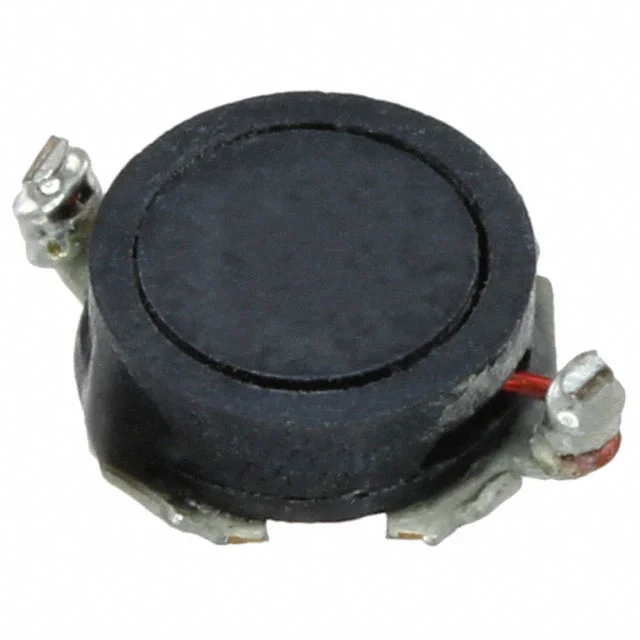

FIXED IND 1.5UH 1.3A 38 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PG0085.152NL.
PG0085.152NL has an inductance value of 1.5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PG0085.152NL is rated for 1.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PG0085.152NL lists a DC resistance of 38mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PG0085.152NL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PG0085.152NL to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 38mOhm Max |
| Saturation Current | 1.3A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.5UH 1.3A 38 MOHM SMD |
| Series | PG0085NL |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 40MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.071" (1.80mm) |
