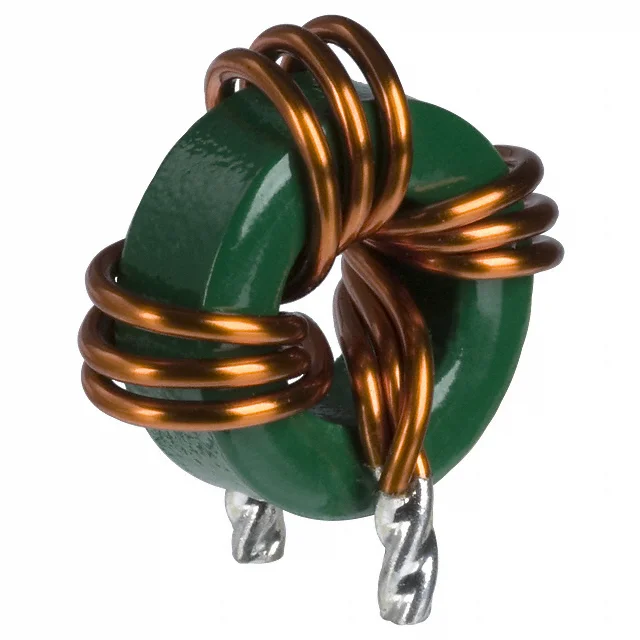

Description
FIXED IND 480NH 30.5A 2 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PG0122.
PG0122 has an inductance value of 480 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PG0122 is rated for 30.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PG0122 lists a DC resistance of 2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PG0122 uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PG0122 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 480 nH |
| Current Rating | 30.5 A |
| DC Resistance (DCR) | 2mOhm Max |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.807" Dia x 0.374" W (20.50mm x 9.50mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 480NH 30.5A 2 MOHM TH |
| Series | Bare Coil |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Mounting Type | Through Hole |
