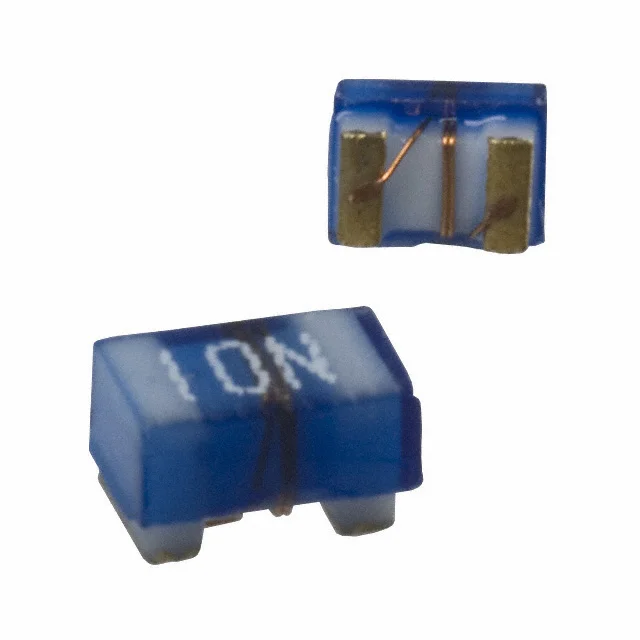

Description
FIXED IND 22NH 700MA 190 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM0603-22NJ.
PM0603-22NJ has an inductance value of 22 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM0603-22NJ is rated for 700 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM0603-22NJ lists a DC resistance of 190mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM0603-22NJ uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM0603-22NJ to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 nH |
| Tolerance | ±5% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 190mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.065" L x 0.041" W (1.65mm x 1.05mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 22NH 700MA 190 MOHM |
| Series | PM0603 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 38 @ 250MHz |
| Self Resonant Frequency | 3GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.047" (1.20mm) |
