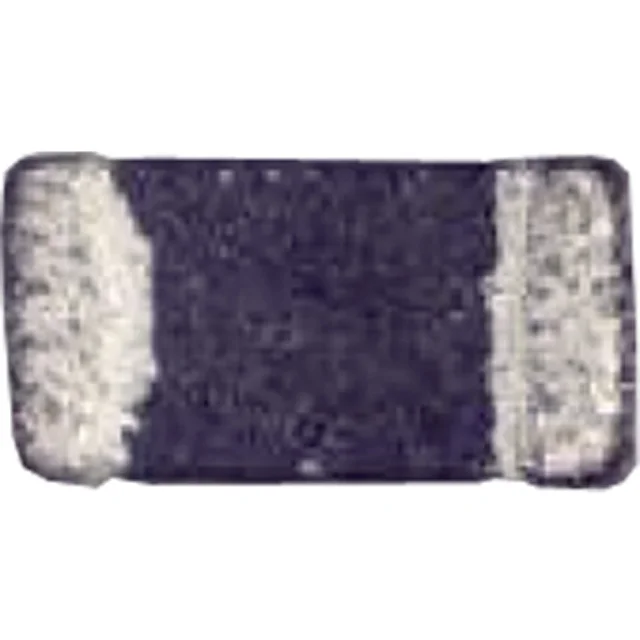

PM0603-72ND-RC
Bourns Inc.
Description
FIXED IND 72NH 400MA 490 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM0603-72ND-RC.
PM0603-72ND-RC has an inductance value of 72 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM0603-72ND-RC is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM0603-72ND-RC lists a DC resistance of 490mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM0603-72ND-RC uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM0603-72ND-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 72 nH |
| Tolerance | ±0.3nH |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 490mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.045" W (1.60mm x 1.15mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 72NH 400MA 490 MOHM |
| Series | PM0603 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Alumina |
| Shielding | Unshielded |
| Q @ Frequency | 34 @ 250MHz |
| Self Resonant Frequency | 1.7GHz |
| Inductance Test Frequency | 200 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.040" (1.02mm) |
