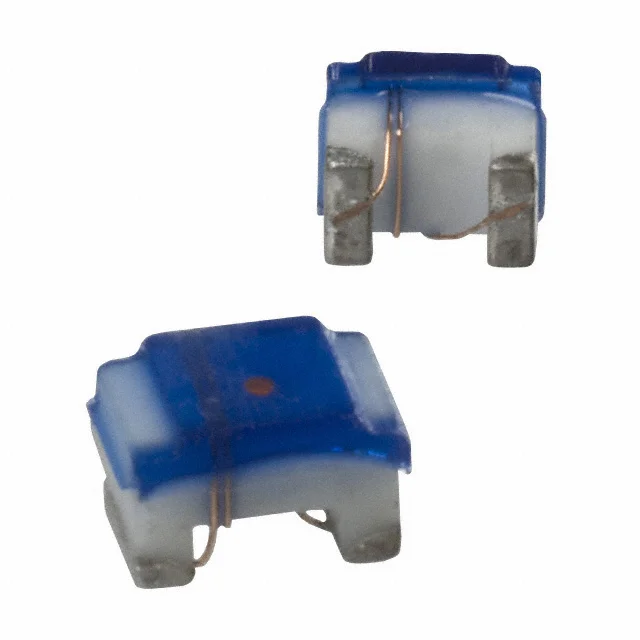

Description
FIXED IND 2.2NH SURFACE MOUNT
Specifications
Inductance
2.2 nH
Dimensions
0.083" L x 0.059" W (2.10mm x 1.50mm)
Parameter Guide
Understand the key electrical and mechanical specifications for PM0805-2N2M-RC.
Inductance
2.2 nH
PM0805-2N2M-RC has an inductance value of 2.2 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
0805 (2012 Metric)
PM0805-2N2M-RC uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM0805-2N2M-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 nH |
| Tolerance | ±20% |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2NH SURFACE MOUNT |
| Series | PM0805 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Alumina |
| Shielding | Unshielded |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.059" (1.50mm) |
