Description

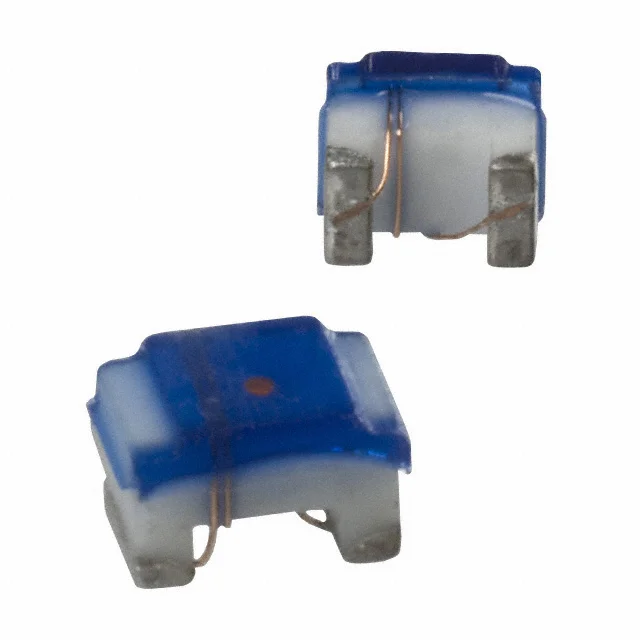

FIXED IND 2.8NH 800MA 60 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM0805-2N8M-RC.
PM0805-2N8M-RC has an inductance value of 2.8 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM0805-2N8M-RC is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM0805-2N8M-RC lists a DC resistance of 60mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM0805-2N8M-RC uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM0805-2N8M-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.8 nH |
| Tolerance | ±20% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 60mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.8NH 800MA 60 MOHM |
| Series | PM0805 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Alumina |
| Shielding | Unshielded |
| Q @ Frequency | 32 @ 1GHz |
| Self Resonant Frequency | 6GHz |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.059" (1.50mm) |
