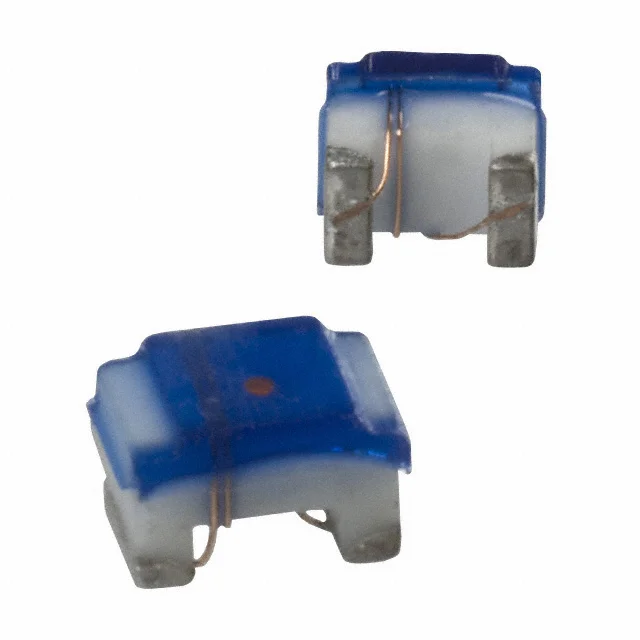

FIXED IND 39NH 500MA 290 MOHM
| Inductance | 39 nH |
| Tolerance | ±20% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 290mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 39NH 500MA 290 MOHM |
| Series | PM0805 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 60 @ 500MHz |
| selfResonantFreq | 2GHz |
| ratings | - |
| testFrequency | 250 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.059" (1.50mm) |
| features | - |
