Description

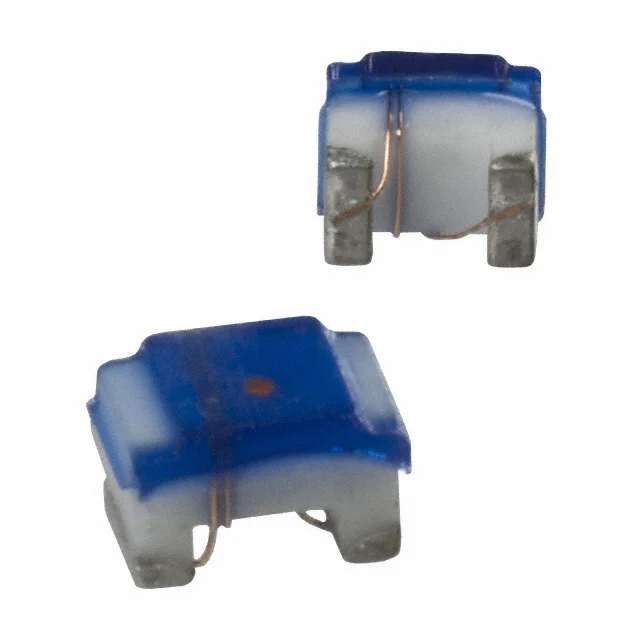

FIXED IND 47NH 500MA 310 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM0805-47NM.
PM0805-47NM has an inductance value of 47 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM0805-47NM is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM0805-47NM lists a DC resistance of 310mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM0805-47NM uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM0805-47NM to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 47 nH |
| Tolerance | ±20% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 310mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47NH 500MA 310 MOHM |
| Series | PM0805 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 60 @ 500MHz |
| Self Resonant Frequency | 1.65GHz |
| Inductance Test Frequency | 200 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.059" (1.50mm) |
