Description

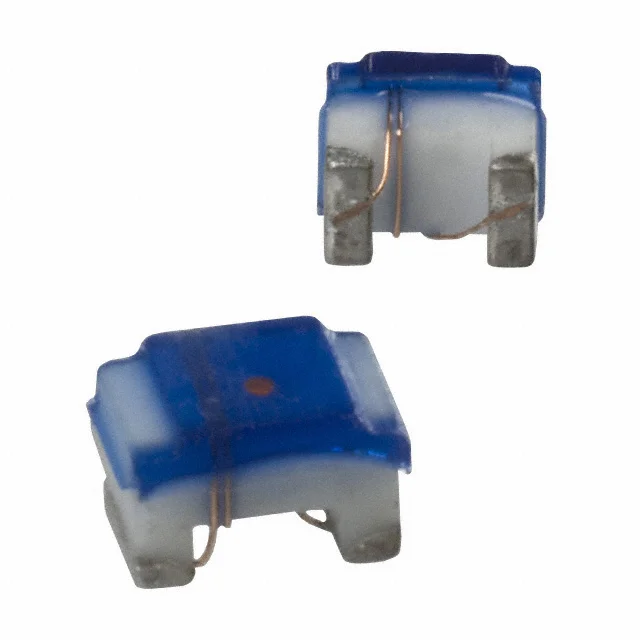

FIXED IND 82NH 400MA 420 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM0805-82NK.
PM0805-82NK has an inductance value of 82 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM0805-82NK is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM0805-82NK lists a DC resistance of 420mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM0805-82NK uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM0805-82NK to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 82 nH |
| Tolerance | ±10% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 420mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 82NH 400MA 420 MOHM |
| Series | PM0805 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 65 @ 500MHz |
| Self Resonant Frequency | 1.3GHz |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.059" (1.50mm) |
