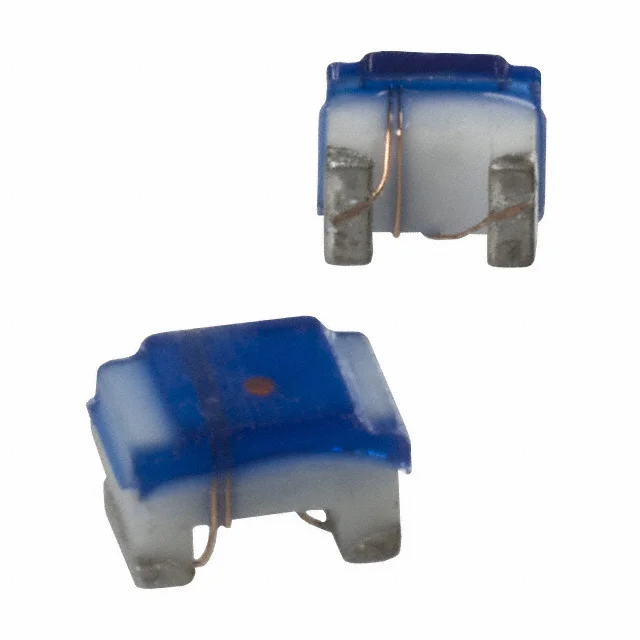

FIXED IND 330NH 200MA 1.65 OHM
| Inductance | 330 nH |
| Tolerance | ±10% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 1.65Ohm |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.083" L x 0.059" W (2.10mm x 1.50mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330NH 200MA 1.65 OHM |
| Series | PM0805 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Alumina |
| shielding | Unshielded |
| qFactor | 45 @ 250MHz |
| selfResonantFreq | 800MHz |
| ratings | - |
| testFrequency | 100 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.059" (1.50mm) |
| features | - |
