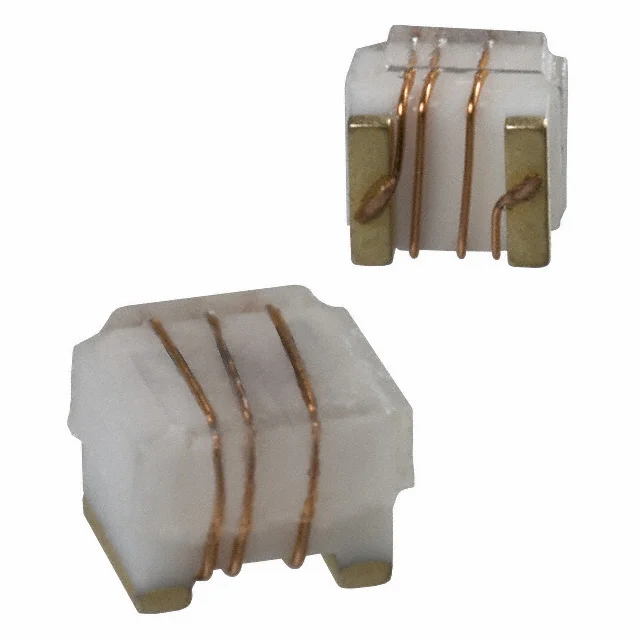

FIXED IND 22NH 1A 120 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM1008-22NM.
PM1008-22NM has an inductance value of 22 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM1008-22NM is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM1008-22NM lists a DC resistance of 120mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM1008-22NM uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM1008-22NM to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 nH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 120mOhm |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 22NH 1A 120 MOHM SMD |
| Series | PM1008 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 55 @ 350MHz |
| Self Resonant Frequency | 2.4GHz |
| Inductance Test Frequency | 50 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.071" (1.80mm) |
