Description

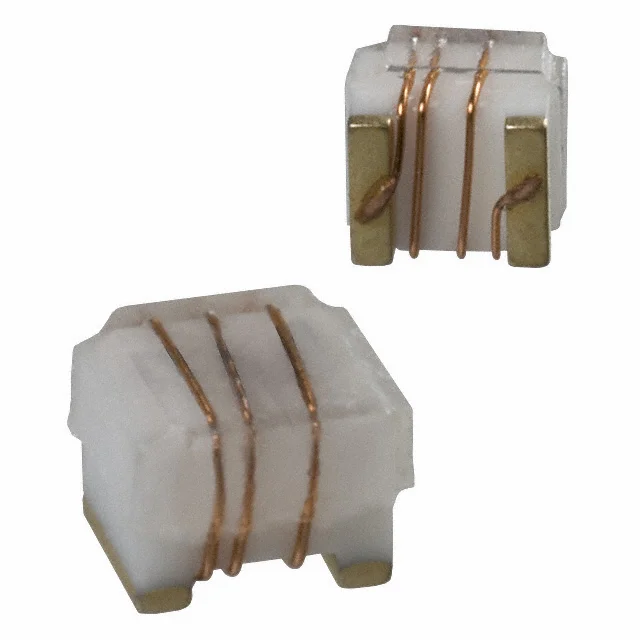

FIXED IND 27NH 600MA 100 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM1008-27NM-RC.
PM1008-27NM-RC has an inductance value of 27 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM1008-27NM-RC is rated for 600 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM1008-27NM-RC lists a DC resistance of 100mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM1008-27NM-RC uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM1008-27NM-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 27 nH |
| Tolerance | ±20% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 100mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 27NH 600MA 100 MOHM |
| Series | PM1008 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 55 @ 350MHz |
| Self Resonant Frequency | 1.6GHz |
| Inductance Test Frequency | 100 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.071" (1.80mm) |
