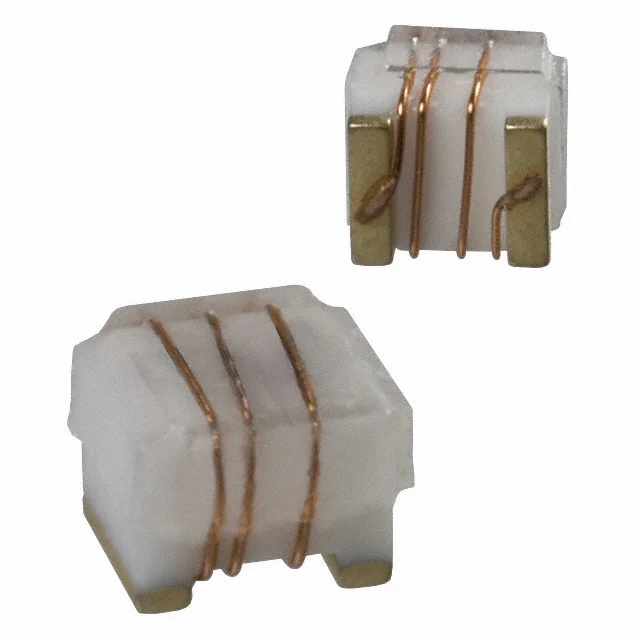

FIXED IND 2.7UH 195MA 1.7 OHM
| Inductance | 2.7 µH |
| Tolerance | ±10% |
| Current Rating | 195 mA |
| DC Resistance (DCR) | 1.7Ohm |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.7UH 195MA 1.7 OHM |
| Series | PM1008 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 22 @ 7.9MHz |
| selfResonantFreq | 70MHz |
| ratings | - |
| testFrequency | 7.9 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.071" (1.80mm) |
| features | - |
