Description

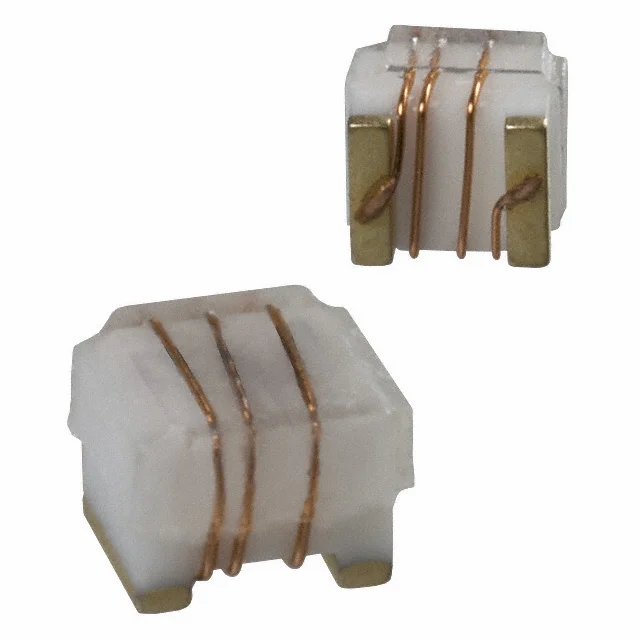

FIXED IND 8.2UH 150MA 9.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM1008-8R2K.
PM1008-8R2K has an inductance value of 8.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM1008-8R2K is rated for 150 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM1008-8R2K lists a DC resistance of 9.5Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM1008-8R2K uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM1008-8R2K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 µH |
| Tolerance | ±10% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 9.5Ohm |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8.2UH 150MA 9.5 OHM |
| Series | PM1008 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 25MHz |
| Self Resonant Frequency | 35MHz |
| Inductance Test Frequency | 7.9 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.071" (1.80mm) |
