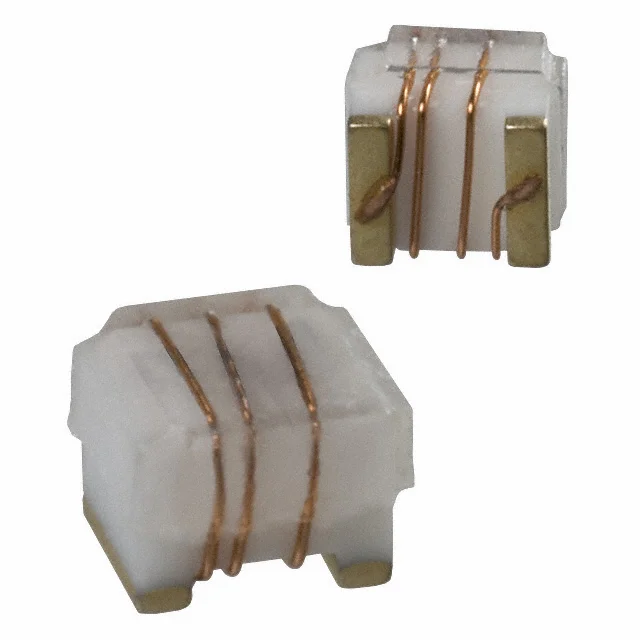

Description
FIXED IND 220NH 500MA 450 MOHM
Specifications
Inductance
220 nH
Current Rating
500 mA
DC Resistance (DCR)
450mOhm
Dimensions
0.098" L x 0.079" W (2.50mm x 2.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/11/2026| Inductance | 220 nH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 450mOhm |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220NH 500MA 450 MOHM |
| Series | PM1008 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ceramic |
| shielding | Unshielded |
| qFactor | 45 @ 100MHz |
| selfResonantFreq | 700MHz |
| ratings | - |
| testFrequency | 25 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.071" (1.80mm) |
| features | - |
