Description

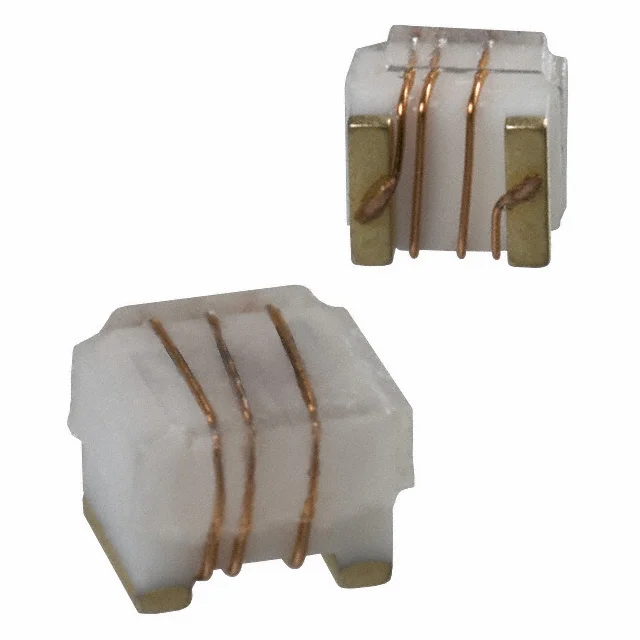

FIXED IND 330NH 450MA 1.05 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM1008-R33K.
PM1008-R33K has an inductance value of 330 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM1008-R33K is rated for 450 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM1008-R33K lists a DC resistance of 1.05Ohm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM1008-R33K uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM1008-R33K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 nH |
| Tolerance | ±10% |
| Current Rating | 450 mA |
| DC Resistance (DCR) | 1.05Ohm |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330NH 450MA 1.05 OHM |
| Series | PM1008 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 45 @ 100MHz |
| Self Resonant Frequency | 570MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.071" (1.80mm) |
