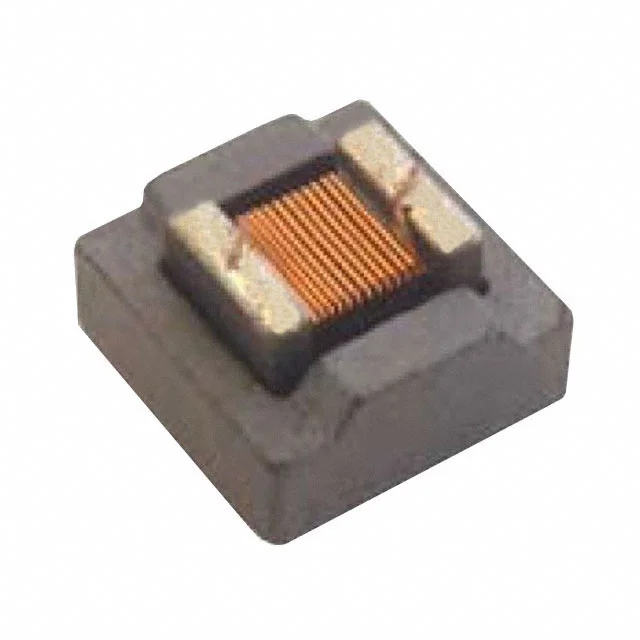

FIXED IND 1.8UH 2A 90 MOHM SMD
| Inductance | 1.8 µH |
| Tolerance | ±20% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 90mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.150" L x 0.150" W (3.81mm x 3.81mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.8UH 2A 90 MOHM SMD |
| Series | PM1008S |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 35 @ 1MHz |
| selfResonantFreq | 225MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.108" (2.74mm) |
