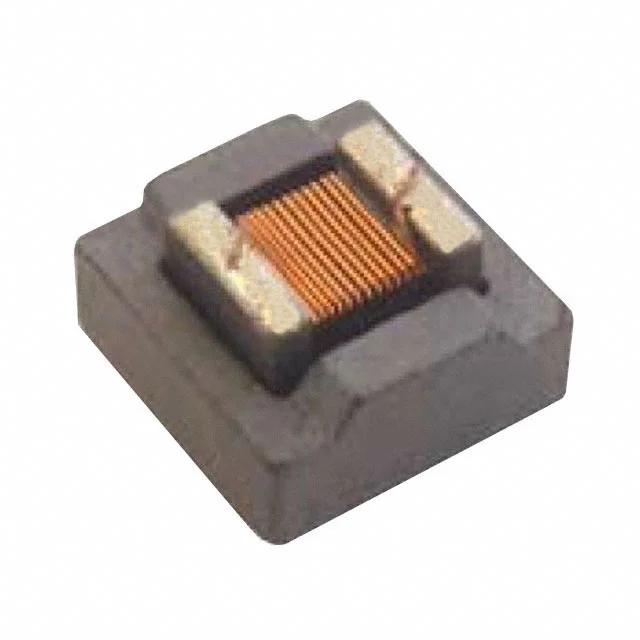

Description
FIXED IND 330UH 200MA 11.5 OHM
Specifications
Inductance
330 µH
Current Rating
200 mA
DC Resistance (DCR)
11.5Ohm Max
Dimensions
0.150" L x 0.150" W (3.81mm x 3.81mm)
Product Attributes
Manufacturer Verified
Last verified: 5/6/2026| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 11.5Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.150" L x 0.150" W (3.81mm x 3.81mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 200MA 11.5 OHM |
| Series | PM1008S |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 55 @ 1MHz |
| selfResonantFreq | 3.8MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.108" (2.74mm) |
| features | - |
