Description

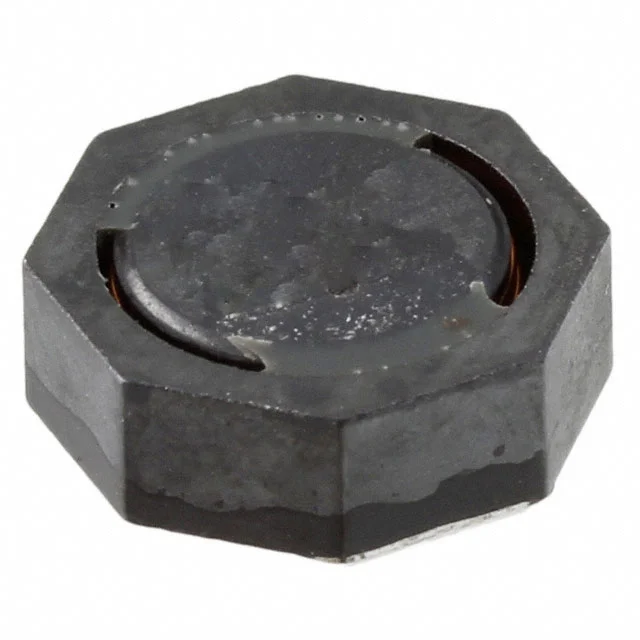

FIXED IND 150UH 900MA 358 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PM104SH-151-RC.
PM104SH-151-RC has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PM104SH-151-RC is rated for 900 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PM104SH-151-RC lists a DC resistance of 358mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PM104SH-151-RC uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PM104SH-151-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±30% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 358mOhm Max |
| Saturation Current | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150UH 900MA 358 MOHM |
| Series | PM104SH |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 20 @ 796kHz |
| Self Resonant Frequency | 5MHz |
| Inductance Test Frequency | 796 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.161" (4.10mm) |
